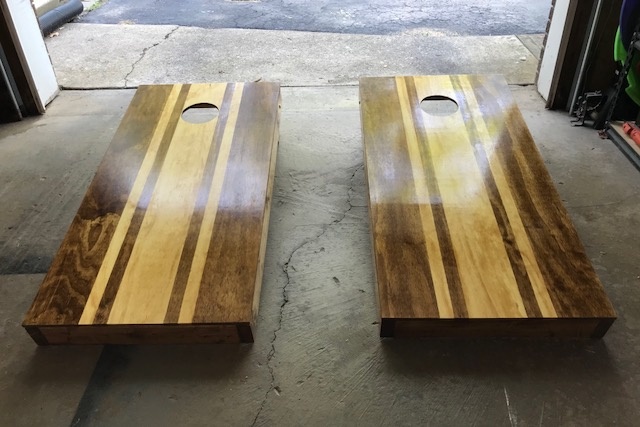

We wanted to build some cornhole boards for our friends lake house since we spend so much time out there. When I googled regulation cornhole board plans to find the dimensions, I found quite a few tutorials but I figured, even though it’s fairly easy to build, since I was doing it anyways, I would try to do a better job then others I had seen.

I also decided to build a cornhole scoreboard and drink holder pictured above. Get the full tutorial for that over here.

For sneak peeks of our upcoming projects be sure to follow me on Facebook and Instagram. Also, follow me on Pinterest to get tons of projects plans from all around the web!

DIY Cornhole Board Plans - Rogue Engineer 1

Disclosure: The links provided in the “materials” and “required tools” sections are affiliate links. If you would like to support our site and help keep our content free come find out more about how we can make money with no extra cost to you.

Dimensions

DIY Cornhole Board Plans - Dimensions

Cut List

This cut list is based on the fact that the 3/4″ x 2′ x 4′ boards are actually 2′ x 4′. If they are not then you will need to adjust your cuts accordingly. For instance, if your boards 23-3/4″ x 47-3/4″ then you’ll need to deduct 1/4″ from each of your 2 x 4s. Also note that the 2x4s are nominal lumber so the actual dimensions are 1-1/2″ x 3-1/2″.

DIY Cornhole Board Plans - Cut List

Cornhole Board Plans

If you decide to take on this project I highly recommend you download the printable PDF below to have with you during the build.


Download Printable PDF

Step 1: Drill Holes and Round the Legs

Using a 3/8″ wood bit drill a hole as shown in the plans below. Then round off the legs as shown with a jigsaw or bandsaw and sand smooth. This will allow the legs to rotate and swing back into the boards for storage.

DIY Cornhole Board Plans - Step 1

I used a roll of tape to mark the cut I would need to round off the edges.

DIY Corn Hole Boards Plans - Rogue Engineer 1

Tip: When drilling holes in wood, drill most of the way through or until the tip of the drill bit pokes through the other side and then flip the board over and finish the hole from the other side. This will help to avoid “tear out” and give you a clean hole on both side.

DIY Corn Hole Boards Plans - Rogue Engineer 2

DIY Corn Hole Boards Plans - Rogue Engineer 3

I used the jigsaw to round off the corners and it worked well.

DIY Corn Hole Boards Plans - Rogue Engineer 4

However, if you have a bandsaw this will give you a much cleaner cut.

DIY Corn Hole Boards Plans - Rogue Engineer 5

Whichever you use, make sure to follow up with a good sanding.

DIY Corn Hole Boards Plans - Rogue Engineer 6

Step 2: Assemble the Frame

To assemble the frame make sure to pre-drill and then screw together using 2-1/2″ wood screws.

If using #10 screws then pre-drill with a 7/64″ bit

If using #8 screws then pre-drill with a 3/32″ bit.

DIY Cornhole Board Plans - Step 2

DIY Corn Hole Boards Plans - Rogue Engineer 7

DIY Corn Hole Boards Plans - Rogue Engineer 8

DIY Corn Hole Boards Plans - Rogue Engineer 9

Step 3: Attach the Top

Pre-drill and attach the top using 1-5/8″ wood screws as shown below.

DIY Cornhole Board Plans - Step 3

DIY Corn Hole Boards Plans - Rogue Engineer 10

DIY Corn Hole Boards Plans - Rogue Engineer 11

DIY Corn Hole Boards Plans - Rogue Engineer 12

Step 4: Cut the Holes

Cut the holes for your cornhole boards as shown below. Then follow up with a good sanding to the sides of the hole.

DIY Cornhole Board Plans - Step 4

Option 1: Hole Saw

Use a 6″ Hole Saw and simply drill out the hole as shown.

DIY Corn Hole Boards Plans - Rogue Engineer 13

Option 2: Mark and Cut with Jig Saw

Marking

I poked two small holes in a sheet of paper that were spaced 3″ apart. Then I nailed through one hole into the spot marked on the board. Through the other hole I placed my pencil and dragged it around to draw a 6″ circle.

DIY Corn Hole Boards Plans - Rogue Engineer 14

Cutting

To cut out the hole I first drilled a hole inside of the circle with a 1/2″ wood bit and then cut out the hole with a jigsaw.

DIY Corn Hole Boards Plans - Rogue Engineer 15

Whichever option you choose make sure to follow with a good sanding to smooth the hole and edges over.

DIY Corn Hole Boards Plans - Rogue Engineer 16

Step 5: Finish the Boards and Legs

First, sand the boards smooth all over with 220 grit sandpaper. Now, here is where you can really personalize your boards. You can simply paint them your team colors and add stickers or decals if you want or you can even purchase a cornhole board wrap and simply stick it on. Some even go as far as to add lights for nighttime matches.

DIY Cornhole Board Plans - Step 5

DIY Corn Hole Boards Plans - Rogue Engineer 17

Step 6: Attach the Legs

Attached the legs using the carriage bolts, washers and wingnuts.

DIY Cornhole Board Plans - Step 6

DIY Corn Hole Boards Plans - Rogue Engineer 18

Full tutorial for the cornhole scoreboard with drink holder

Questions? Comments?

As always, if you have any questions don’t hesitate to comment below and especially don’t forget to post pictures of your finished products in the comments! ENJOY!
