Secret Floating Shelf

I recently designed a floating shelf for Whitney from Shanty2Chic and it had me thinking about all that wasted space inside the floating shelf. Then the light bulb went off! A false bottom with hidden storage! That was it! So off to the drawing board I went. After a few hiccups, this is what I came up with. And, believe it or not, I built it for about $30!

For sneak peeks of our upcoming projects be sure to follow me on Facebook and Instagram. Also, follow me on Pinterest to get tons of projects plans from all around the web!

Secret Shelf | Free Plans | Rogue Engineer | Pinterest

Secret Shelf | Free Plans | Rogue Engineer

Secret Shelf | Free Plans | Rogue Engineer

Secret Shelf | Free Plans | Rogue Engineer

Secret Shelf | Free Plans | Rogue Engineer

Disclosure: The links provided in the “materials” and “required tools” sections are affiliate links. If you would like to support our site and help keep our content free come find out more about how we can make money with no extra cost to you.


Secret Shelf | Free Plans | Dimensions

Cut List

Secret Shelf | Free Plans | Cut List

Secret Shelf Plans

If you decide to take on this project I highly recommend you download the printable PDF below to have with you during the build. To do so just click the button below and subscribe to get weekly updates. In return I’ll instantly email you the PDF for free! It’s a win-win.

Download Printable PDF

Secret Shelf | Free Plans | Step 1

Secret Shelf | Free Plans | Step 1

Secret Shelf | Free Plans | Step 2

Secret Shelf | Free Plans | Step 2

Secret Shelf | Free Plans | Step 2

Secret Shelf | Free Plans | Step 2

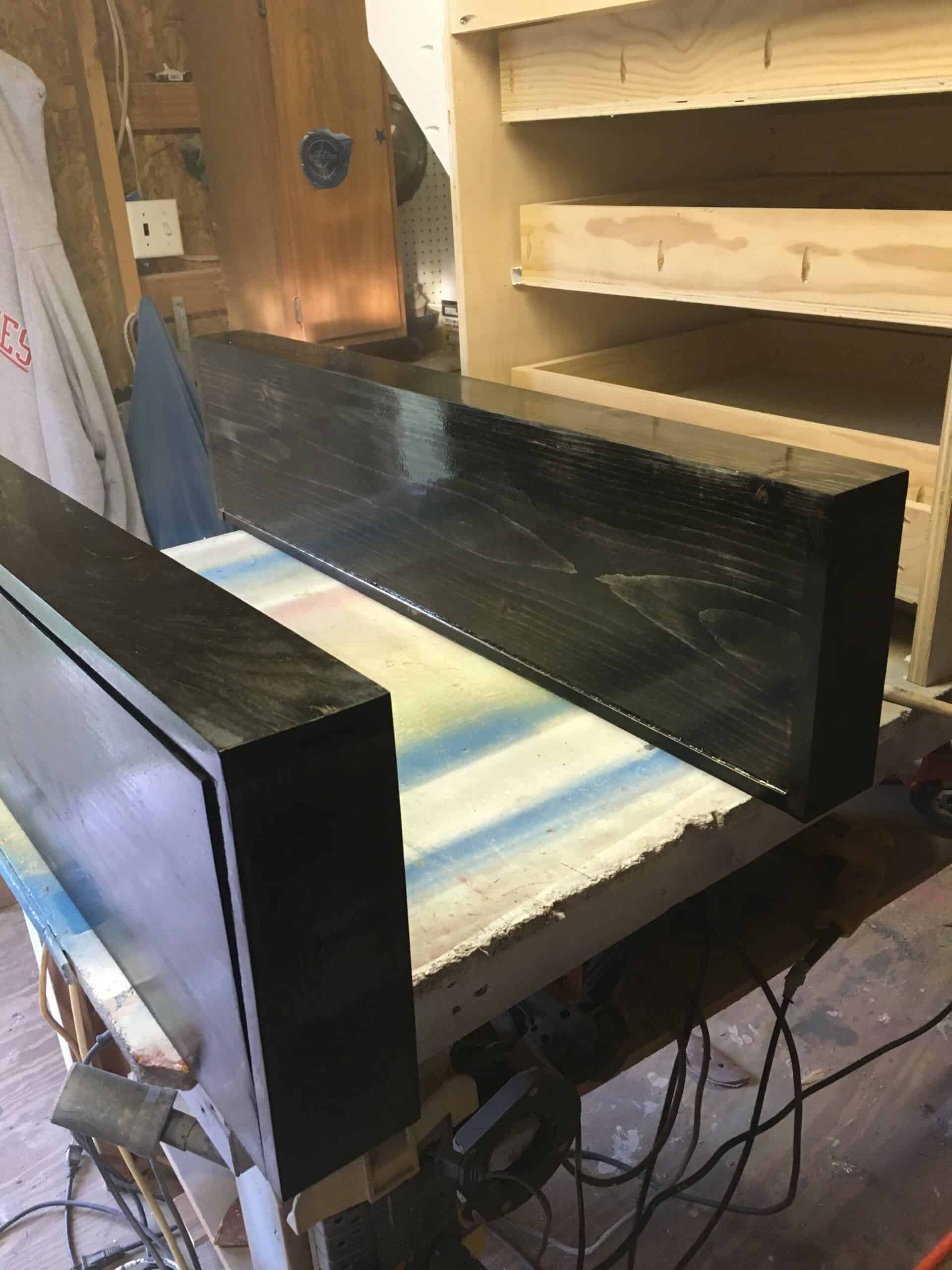

We decided to finish our secret shelf with Kona wood stain from Varathane.

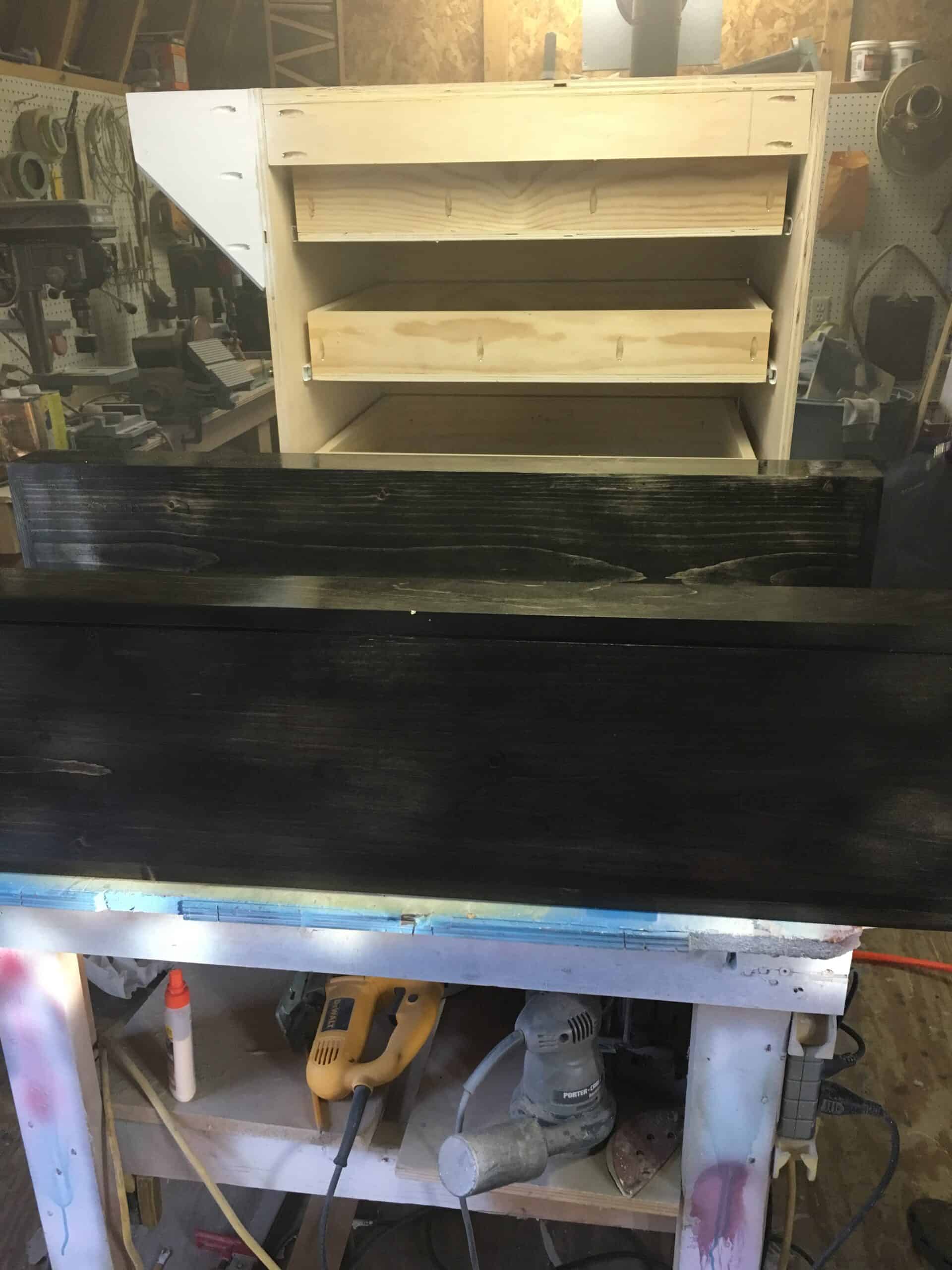

Secret Shelf | Free Plans | Finishing

Our little helper!

Secret Shelf | Free Plans | Finishing

Secret Shelf | Free Plans | Finishing

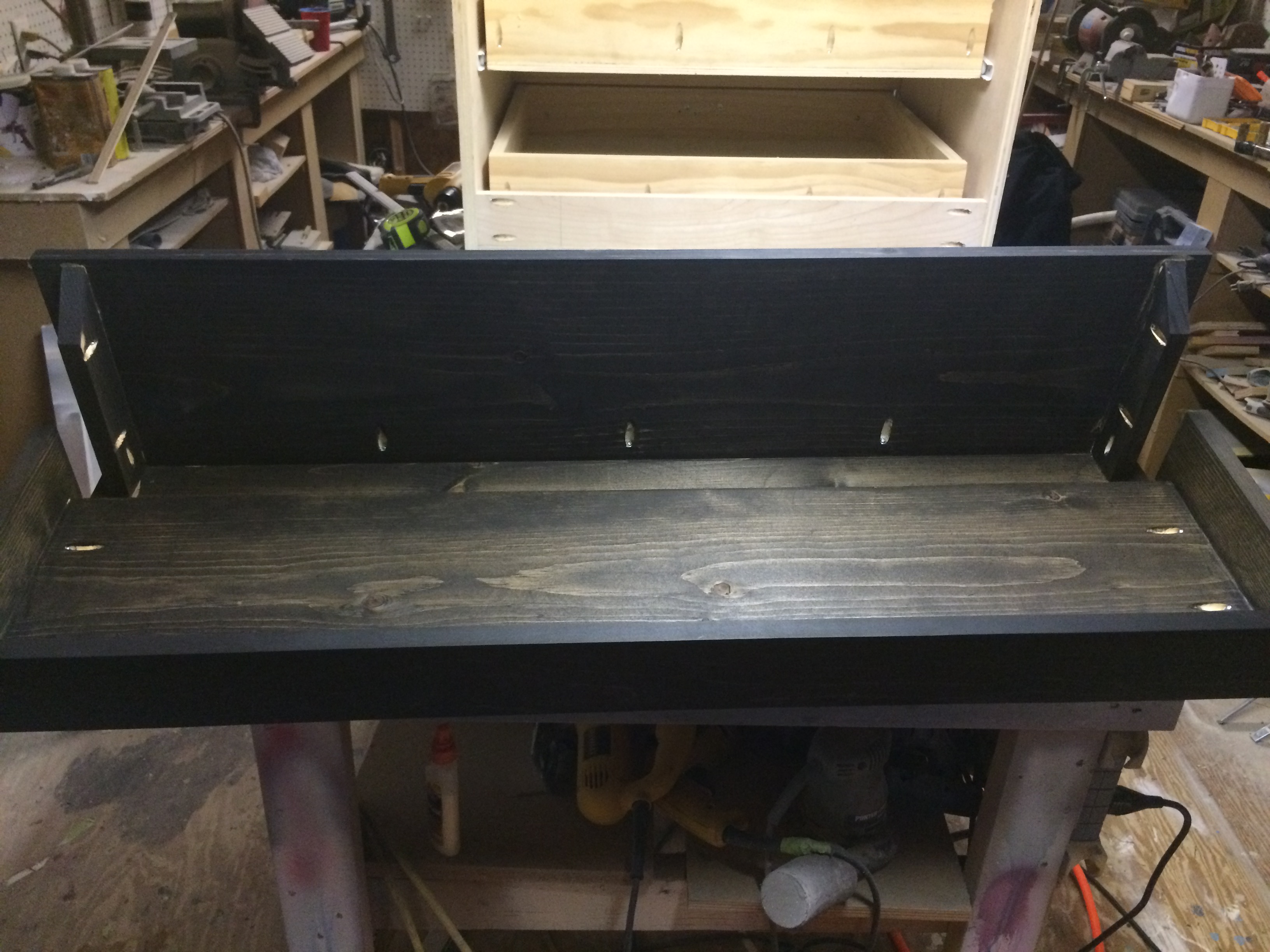

Secret Shelf | Free Plans | Step 3

Secret Shelf | Free Plans | Step 3

Secret Shelf | Free Plans | Step 3

Secret Shelf | Free Plans | Step 3

Secret Shelf | Free Plans | Step 4

Secret Shelf | Free Plans | Step 4


First, find the perfect spot for your new secret shelf and then mark a level line at the height you would like to mount it. Next, use a stud finder to locate and mark two studs. Mount the secret shelf using two 2-1/2″ wood screws per stud.

Secret Shelf | Free Plans | Laser Level

Secret Shelf | Free Plans | Laser Level

Secret Shelf | Free Plans | Laser Level

Mark a level line.

Secret Shelf | Free Plans | Stud Finder

Search for two studs…

Secret Shelf | Free Plans | Stud Finder

.. there’s one!

Secret Shelf | Free Plans | Mounting

Attach with two 2-1/2″ wood screws in each stud.
