DIY Portable Lumber Rack Plans - Rogue Engineer

A few weeks ago opened the garage door and decided I had hit my boiling point with my scrap wood pile. Out of impulse I pulled it all out into the driveway and through together something quick to help organize it and this is how it turned out.

My Temporary Lumber Rack

I posted this lumber rack on Facebook and Instagram with the call to action that if enough folks wanted the plans I would put some together with my “I wish I would have done it this way” mods.

After building this rack I realized a few things I would have done differently had I taken the time to lay it out like I normally do. So here are the plans for how I wish I would have built it.

Lucky for all of us, Katie over at Addicted 2 DIY needed a lumber rack and was nice enough to not only take photos of the rack but she also put together a post, so make sure you head on over to check out her build photos! Enjoy!

For sneak peeks of our upcoming projects be sure to follow me on Facebook and Instagram. Also, follow me on Pinterest to get tons of projects plans from all around the web!

Disclosure: The links provided in the “materials” and “required tools” sections are affiliate links. If you would like to support our site and help keep our content free come find out more about how we can make money with no extra cost to you.

Dimensions

Simple Portable Lumber Rack Plans - Dimensions

Cut List

Simple Portable Lumber Rack Plans - Cut List

How to build a portable lumber rack

Simple Portable Lumber Rack Plans - Step 1
Simple Portable Lumber Rack Plans - Step 2
Simple Portable Lumber Rack Plans - Step 3
Simple Portable Lumber Rack Plans - Step 4

Questions? Comments?

As always, if you have any questions don’t hesitate to comment below and especially don’t forget to post pictures of your finished products in the comments! ENJOY!

About The Author

Related Posts

  • Max Hep

    Ok, my question may be silly, but do you store the wood vertically, or horizontally (like ur pic). Cuz if its vertically, dont I need a bottom shelf?

    • The wood should be stored horizontally on this rack Max.

    • Me

      Smh

  • Amy

    Thank you so much for these plans! My excess lumber was totally getting out of control. I was able to put this cart together really quick. Total cost, including casters was $30. It is the perfect size and very easy to maneuver around.

    • No problem Amy! That’s great to hear. Thanks for the feedback.

  • Mark Cahill

    Made the portable rack and added a place to put small plywood pieces on the side. Cleaned up my workshop nice- no pile of scrap lumber.

    • What a great idea Mark! I’d love to see a photo of it if your willing to share.

  • I just finished building this rack! Thanks so much for the plans. It has cleared up a great deal of space in my garage and it’s easier to see what I have in stock. 🙂

    https://www.ashleygrenon.com/2015/06/diy-mobile-lumber-rack-plans-by-rogue-engineer/

    • That looks awesome Ashley! And it looks like its getting put to good use. Great post and thanks for sharing!

    • Reattaching photo that was removed:

  • Karen Isaacson

    You only need 6 studs to do this:
    2 cut into 65″, 18″ and 10″ pieces
    2 cut into 65″ and 21″ pieces
    2 cut into 33 1/2, 18″, 18″, and 18″ pieces

    It might be just a couple of bucks for a stud, but why make all that useless scrap? This cut makes for less waste.

  • Karen Isaacson

    revised cutting diagram

    • Reattaching photo that was removed

    • Peter Mann

      Many thanks for this plan. I have a lot of reclaimed pallet wood and have just finished a new garage and this rack is absolutely what I have been looking for. Starting build tomorrow.

  • Karen Isaacson

    Not all engineers work in aerospace… ; )

  • Rod Thomas

    Love the design, I made a couple minor changes, just wanted to share:
    The red area is 3/4″ ply to give a ‘bin’ to drop small cutoffs in, & to create a solid bottom to attach the three (yellow) 2×4’s. I came in 3″ from the edge and drilled a hole in the bottom & mounted a Tee nut. Used the router to cut a slot in the 2×4’s & used a star knob to fit the tee nuts. the blue strip is a 1×2.

    Loosen the 3 star knobs, slide the 2×4’s out to desired length & re-tighten. Stack flat material on edge using the 1×2 as a ‘toe’ to keep the plywood bottom in place. (I wouldn’t go more than 8-10″ for the slot to avoid causing tippage due to weight of ply)

    The last thing I did was put 2 lag eyes a few inches from the top (1 on each side) & attach a couple feet of small chain to each with a hook on 1 side, this secures the top of the ply.

    The whole purpose of the extra work was so i could move the ply holder in flush when not in use, to avoid knee knocking & tripping.

    Rod

  • Ed Keogh

    Portable Lumber Rack

    I just built this today and it solves all my problems for dimensional lumber.. I know the plans stated 7 (2×4) were need I did mine with less than 6.

    Thank you for the great design

  • Ed Keogh

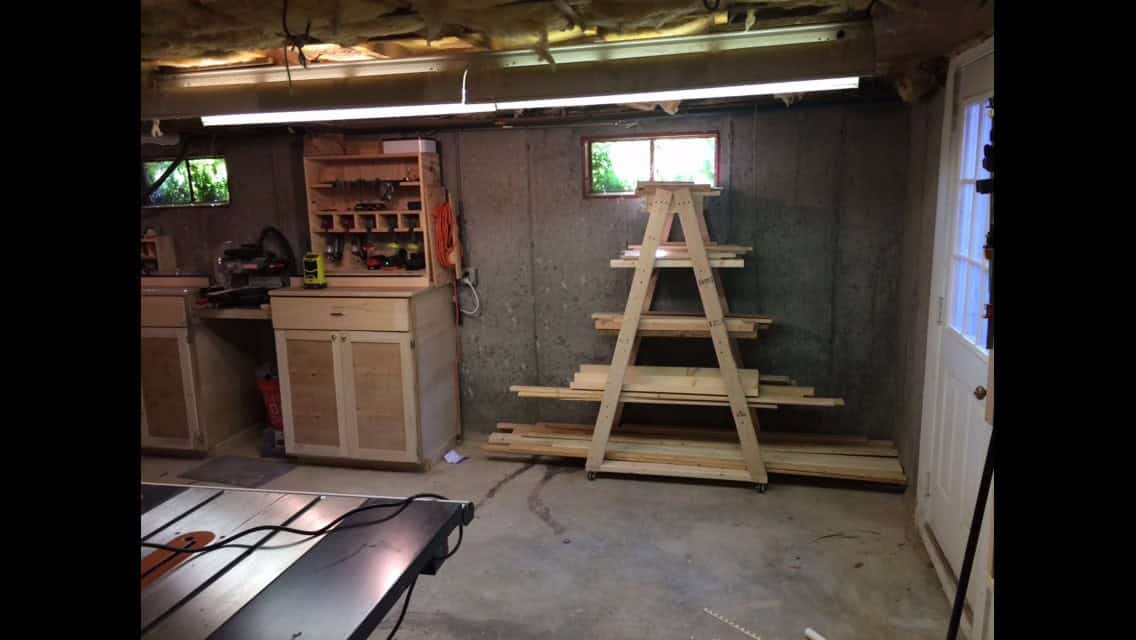

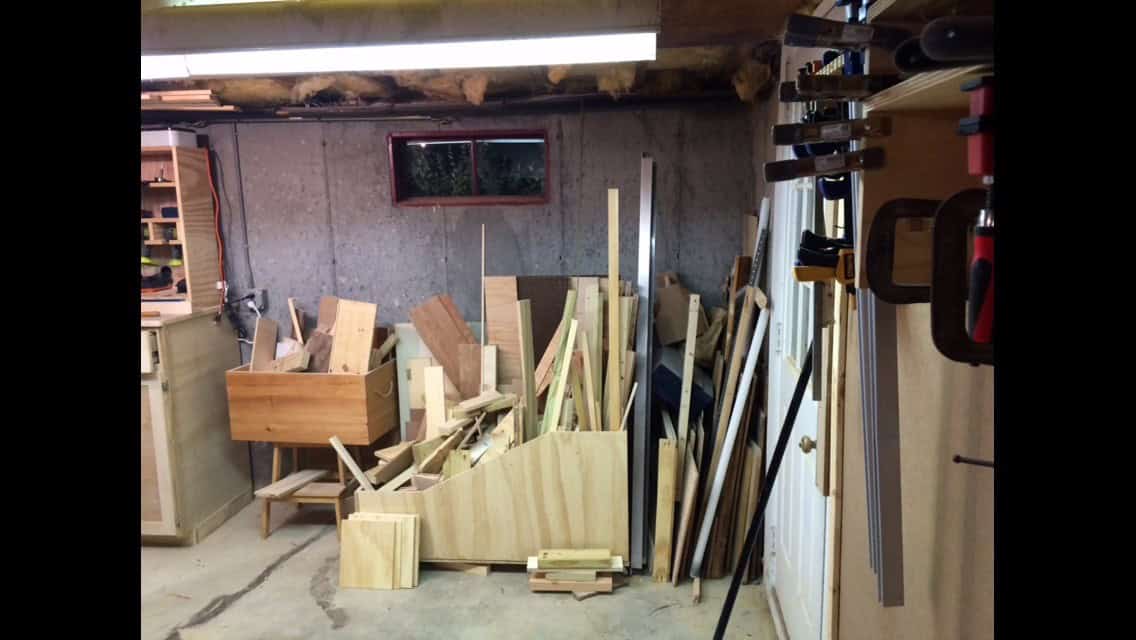

    I too just finished this project and it looks awesome, thanks for the detailed instructions. Below you can see before and after pics. Oh and I concur I only needed 5 1/2 boards at 8′ length

    https://uploads.disquscdn.com/images/a11c9a981feb06d09321634b9a7c017a57ef9b961386374450e0f455e4cb30fb.jpg

    https://uploads.disquscdn.com/images/7c4306505b1136bf1318d897fe841a820f6bce9ad73d8b062cb197cdf86ffec9.jpg
