Rustic Media Center

The girls from Shanty2Chic continue to amaze me. This time Whitney asked me to design a media center based on this media console from Joss and Main.

DIY Rustic Media Center - Inspiration

She just wanted it to be bigger. I new it was going to be a big build but it paid off. This thing turned out amazing and I love the color that she chose. I hope you enjoy the plans! Make sure you head on over to the Shanty2Chic post to see photos of the build.

DIY Media Console - Shanty2Chic

For sneak peeks of our upcoming projects be sure to follow me on Facebook and Instagram. Also, follow me on Pinterest to get tons of projects plans from all around the web!

Materials

Disclosure: The links provided in the “materials” and “required tools” sections are affiliate links. If you would like to support our site and help keep our content free come find out more about how we can make money with no extra cost to you.

Dimensions

DIY Rustic Media Center Plans - Dimensions

Cut List

DIY Rustic Media Center Plans - Cut List - Plywood

DIY Rustic Media Center Plans - Cut List - Boards

How to build a Rustic Media Cabinet

Following these step-by-step plans you can build your own rustic media cabinet just like Whitney from Shanty2Chic did!

Download Printable PDF


DIY Rustic Media Center Plans - Step 1

DIY Rustic Media Center Plans - Step 2

DIY Rustic Media Center Plans - Step 3

DIY Rustic Media Center Plans - Step 4

DIY Rustic Media Center Plans - Step 5

DIY Rustic Media Center Plans - Step 6

DIY Rustic Media Center Plans - Step 7

DIY Rustic Media Center Plans - Step 8

DIY Rustic Media Center Plans - Step 9

DIY Rustic Media Center Plans - Step 10

Questions? Comments?

As always, if you have any questions don’t hesitate to comment below and especially don’t forget to post pictures of your finished products in the comments! ENJOY!

About The Author

Related Posts

  • Veronica

    I think this would be perfect for my living room. Im wondering if that divider on the top shelf needs to be there. It would be good place to put the sound bar. Also I would be hanging my TV on the wall above it, so I would have anything other than decorative items on top. I can’t wait to build this.

    • I think you could get away without the mid support being that there wouldn’t be much weight on top.

      • Mike

        I would still put the center divider in, just make it shorter and leave enough room for your sound bar to rest in front of it. You’d still gain some reinforcement from it and your sound bar would sit to the front appearing almost as a flush mount!

  • Jon Y.

    Great piece. What is stopping the doors from swinging too far in or out? Did you use a stop or additional hardware such as a magnet?

    • Thanks Jon, I just realized I didn’t include the last step! A magnetic catch is what I suggested for the stop.

  • Kyle Fenton

    Where did you find the t hinges and what size? I am in the process of building this and can’t find those kinds of hinges?

  • hubert k

    Hi Jamison –

    Thanks, love the site. Console looks great! I’ve ripped all the wood and about to go to assembly.

    Can you share some insights into staining / painting? Generally are you staining before or after assembly?

    This piece looks “distressed” – any hints on how to achieve that effect?

    Any products / brands / colors you like to use would be appreciated.

    Beautiful piece, love it!

    HK

  • Jim

    How long would a build like this normally take for a weekend warrior?

    • It could be done in a weekend. Maybe two. One for building and one for finishing.

  • Renee Meaux

    Any tips for cutting holes for cords out the back for the DVR, receiver, etc.?

    • Clamp the panel to a scrap board and drill with a hole saw bit through the panel and into the board. This will help avoid tear out of the back panel.

  • Hubert k

    Hi Jamison,

    I think I made a huge mistake!

    I wanted to build this piece using hardwood so I went to a lumberyard and bought about 50 board feet of Ash. We ripped it down to the dimensions in the plans – but it looks like the dimensions are not exact.

    For example, to make the sides, I have 5 boards that are 1 x 4 x 31 1/4″ – which is 20″ wide (5×4″). But how would I get these five pieces to fit onto a 17 1/2″ wide?

    Am I reading the cut-list wrong?

    I love the site and have been inspired to build! But now I’m faced with a puzzle I can’t quite resolve.

    Any help you can provide is appreciated.

    Thanks!

    Hubert

    • Hubert,
      Lumber has a nominal size (2×4) and an actual size (1.5×3.5). Dimensional lumber is what is found at most hardware stores and lumberyards. When the timber is cut, it is cut to a nominal size such as 2×4, but to make the finished lumber it is then milled and planed which reduces its size. If you look on line you can find dimensional size charts for lumber, which will help you in future projects.

  • Shelly J.

    Hi, wondering where you got the hinges for the Rustic Media Center.

  • Campbell

    Hi Jamison
    I have been looking all over the internet for a media console that could accommodate a turntable with a slide out drawer. I really liked the look of this plan and was thinking this plan might work if the “divider” on the top shelf be taken out and the top shelf be divided into three with the middle shelf being a slider. Would this work?

    Any suggestions on the best way to handle the alterations to the plans?

    Thank you!

    • I think that would be a simple mode and would work well. Adding another divider should be pretty straight forward. Happy building!

  • Steve Gronsky

    A father-son weekend project.

  • Max Shawver

    Made the rustic media console for my stepson. He recently graduated from college, got a good job, and his first apartment. Had to cut down the length of the console from 64 inches to 44 inches because the apartment is pretty small. Kept the middle shelves the same. Just cut down the doors. Turned out well and he loves it!

    • That’s great Max, thanks for sharing and I’m glad it turned out so well.

  • Ashley Farr

    I don’t have a brad nailer, what could i use instead?

  • Kaycie yates

    Is it possible for you to modify the plans for me? I wish I was good enough to do this myself but I am not. I need it to be 6ft long and 43″ high. This is the closest thing I can find to what I need. I appreciate any help I can get.

    • Unfortunately I cannot rewrite the plans to suit these dimensions right now. Sorry about that, I just don’t have the time.

  • Janine

    Quick question … do you think the sides would support shelf support pins so I could do adjustable shelves?
    Thanks for the great plan!

    • Janine

      Sorry … I should clarify. I was thinking on both the closed door sides, and maybe centre,

  • Thanks for the excellent plans. Thought I’d do a share of my completed project with you. Check out my completed pics here:https://www.handmadehome.us/blog/media-console

  • Andrew Vick

    Im confused on the 1×4 slats it says they should be cut @31′ 1/4” but the frame is 34′ 1/4”. Am I missing something?

    • The legs extend 3″ past the slats. See step 2. I think that’s what you are referring too. Let me know if it’s not.

  • Randy Felder

    Thanks for the plans! Finished this Christmas Eve for my wife. She loves it.

  • Rajah Jackson

    What did you use to angle the legs? I would like to add this feature and am having trouble visualizing it.

    • Rajah Jackson

      Can it be achieved with a miter saw?

    • Probably not with a miter saw since the angle would be too great. A jigsaw or a circular saw would be best.

      • Rajah Jackson

        That’s what I figured…have you heard of Home Depot or lowes doing the taper for you, by chance?

        • I haven’t but you could also do this with a hand saw.

          • Rajah Jackson

            Thanks for the plans! Just wrapped this up.

  • Melissa Maki Coutney

    id like to add another set of shelves the long ones (so there are 4 shelf inlets instead of 2) are there any plans for this modification? or can you just let me know what the sides would measure ? thanks

    • Don’t have any plans for this mod. Just add 8-1/4″ to the sides and another shelf on top and you should be fine

  • Annette Billingsley Franklin

    I love this console. But I need it to be 84″ wide. With a cabinet for a woofer and taller. Not sure how to modify the plans and come up with correct measurements for cuts. Any help is appreciated.

    • Sounds like you’ll just need to add 20″ to the lengthwise boards and add 6 or 7 inches to the middle shelf.

  • Chris Phillips

    Finished my version yesterday.

    • That looks amazing!!! Thanks so much for sharing and excellent work my friend.

    • Will Hyde

      What stain did you use for the top?

  • Jay Winn

    Finished mine today. The plans made for a slightly deeper cabinet than we needed. I changed to 1×3 and 1×6 boards. Super excited about how it turned out. Thank you!

    • That’s awesome Jay! Nice color choice and great work. Thanks for sharing!

    • Robyn Campbell

      We are also wanting to reduce the depth of the cabinet as you have done. Would you be able to share your modifications and any problems we might encounter?

      • Jay Winn

        The only thing I had to do different was on the door panels. I picked up a 3/4″ x 3/4″ stick from the finished wood section at the depot because the 1×3’s didn’t full the cabinet opening. Here’s a picture.

        • Robyn Campbell

          Thanks so much for the reply. So aside from the change to the door panel, you made changed all the 1x8s on the top to 1x6s and the sides all from 1x4s to 1x3s?

          What were your final dimensions of the finished console?

          I really appreciate your help!

          • Jay Winn

            The top is 16 1/4″ and the width is 64″. The cabinet is 15″ deep and 62 1/2″ wide. Use the same number of 1×3’s as the plan says for 1×4’s on the sides and doors. The three 1×2’s on step 2 are 12″.

          • Robyn Campbell

            You have been a big help. I appreciate you taking the time to assist!

            We will give this a try.

  • Joseph Collins

    Thanks for plans, finished mine today, used grey stain, satin poly and modified top section slightly.

  • Zoua

    If I don’t include the divider piece for the top shelves (so there is only one long shelf instead of two shelves), would there be a support issue? We have a long and deep soundbar that we would like to place in this shelf. If we have the tv on top (55″ flatscreen I believe), would that be ok?

  • Mason

    Jamison, What would need to be done to this piece to add a top hutch portion to it? I plan on adjusting the dimensions slightly to make it a little taller and a little longer and want to add a top to it and turn this piece into a China cabinet/buffet.

    • It should be plenty sturdy to had a hutch to the top of this without making any modifications to the plan. Can’t wait to see how it turns out. Be sure to post some pictures.

  • Alicia

    Love this! This is my first build I’m wanting to make this 54 inches wide what would I need to do to make it all work measurement wise

    • Thanks Alicia! Just take 10″ off any boards that run from side to side. Except for the doors. Leaves those the same.

  • Sean Dawson

    Question….do you think i can get by with 1/2 inch plywood for the shelves? I am mid- build and i have 2 sheets of that on hand. The only thing i’d worry about is load over the full 60 inches

  • Rob Perry

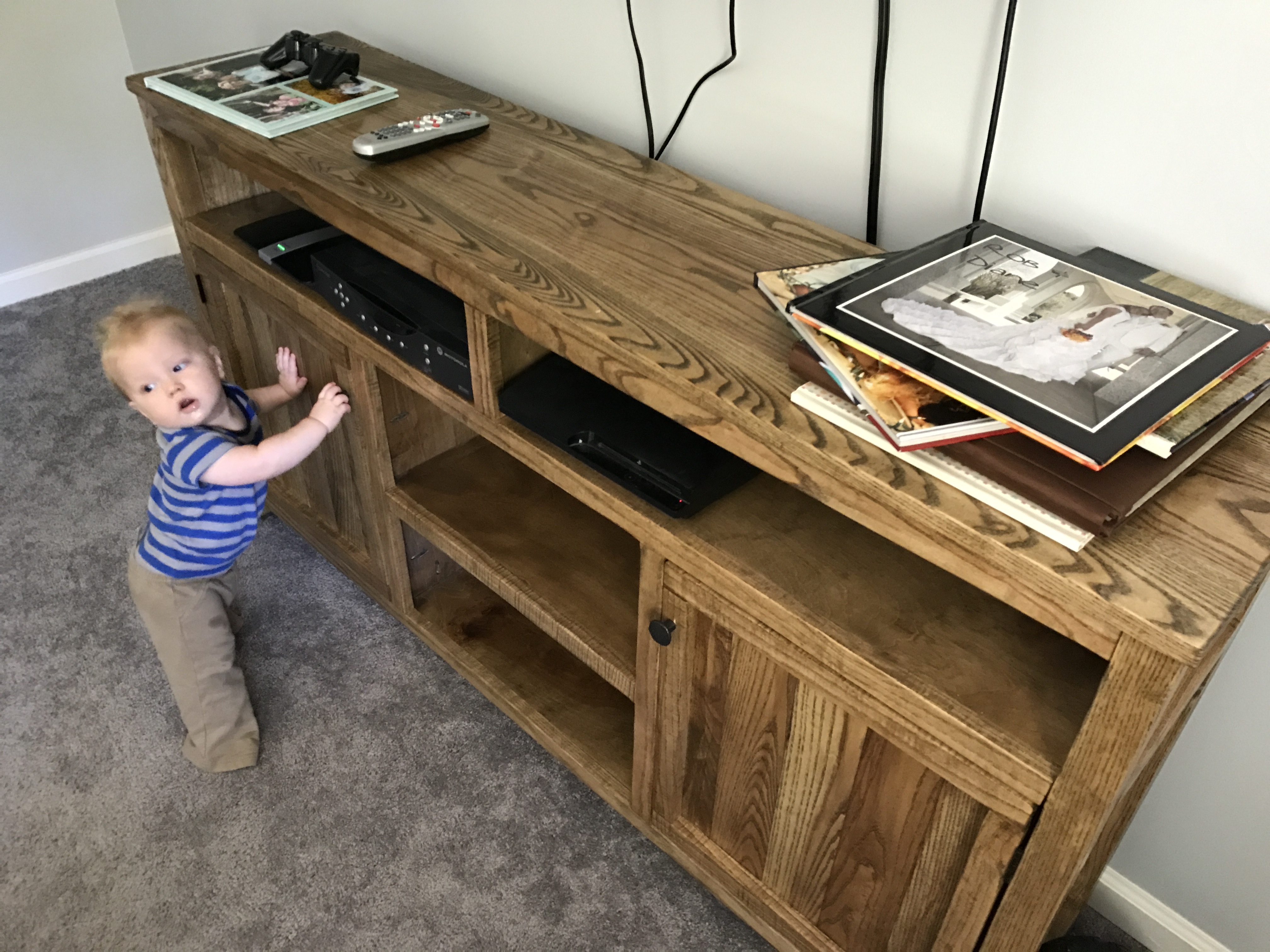

    Finished mine a couple weeks ago. Took 7″ out of the depth and joined the top boards using dowels. Also changed the doors slightly.

    https://uploads.disquscdn.com/images/aadbf4296b67552eca98e7744be0f198b5975af8ee34c0f4ad3062c30a311a6b.jpg

    • Rob Perry

      My son likes it a lot…

      • That’s awesome! Thanks for sharing. And he’s perfect height to press all the buttons now!

  • Dylan Henson

    How long does this project take on average?

  • Ryan AndAmy Coyle

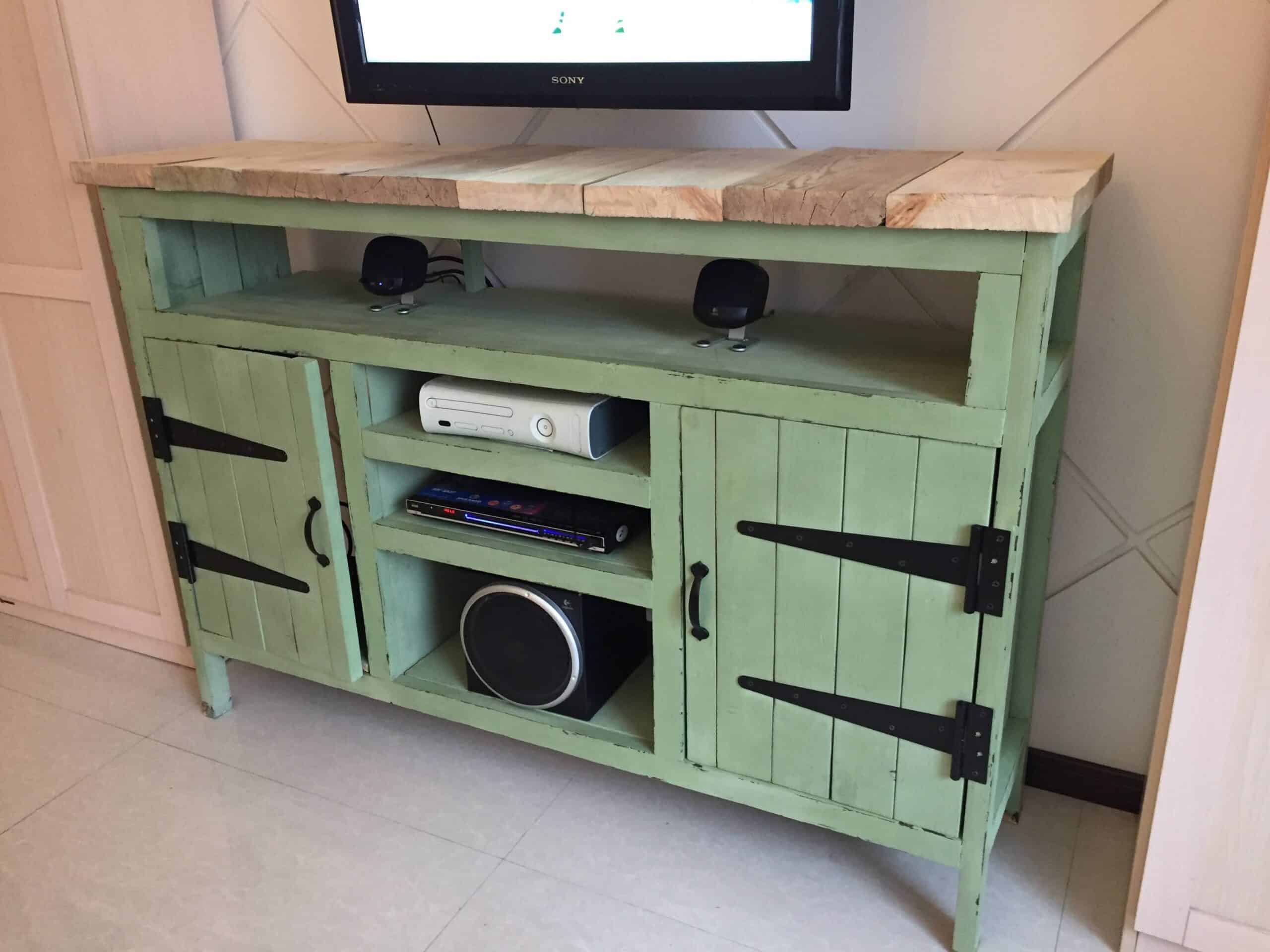

    https://uploads.disquscdn.com/images/0dc05fbb12b008e68003eb5f9412c84327c303a4dc5dbdbb872353ba17adfd11.jpg

    heres mine, slightly adapted… and incomplete, but u get the picture 😉
    thanks and God bless Rogue Engineer!!

  • Tommy L.

    Hi Jamison, do you know what the approximate lumber cost of this media center is? Thanks,

  • Benjy Weisenburgh

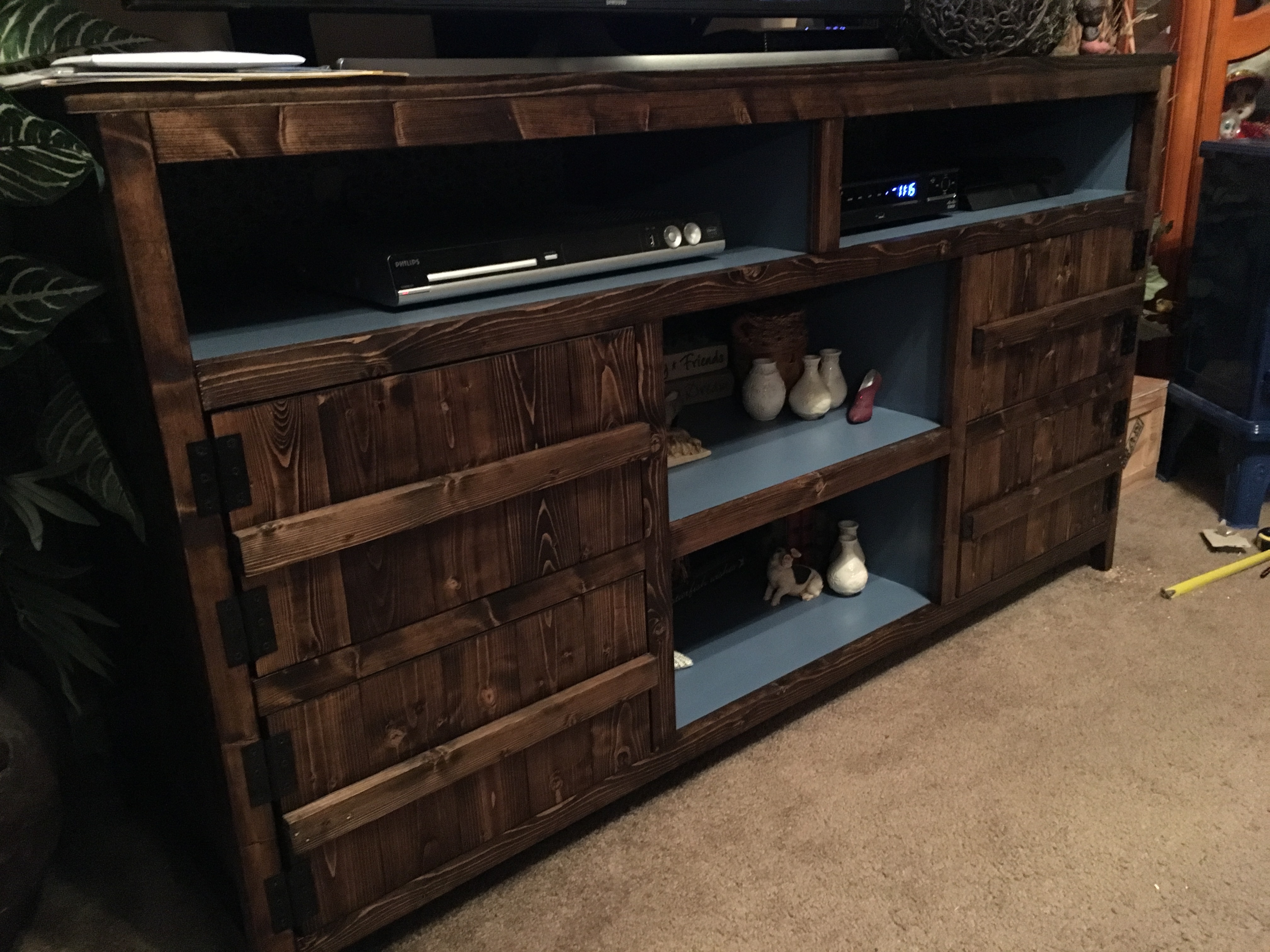

    Finished mine up tonight. All pine, stained dark walnut. Matte blue interior. I covered the back interior in fabric. Plus, I wanted more shelves instead of general storage, so I cut the doors in half horizontally and added a center shelf on each side. So it went from a coupe to a sedan. 😆👍 https://uploads.disquscdn.com/images/bd1fc90ef74290c77df2e5f71ddba02c40fe919e9c8ebbcdae35149f7a7f199c.jpg https://uploads.disquscdn.com/images/a144137040e5d61212129a3cd8902b5682cd919e05a34e6fc927b6b8c46e63cb.jpg

  • James Stuckert

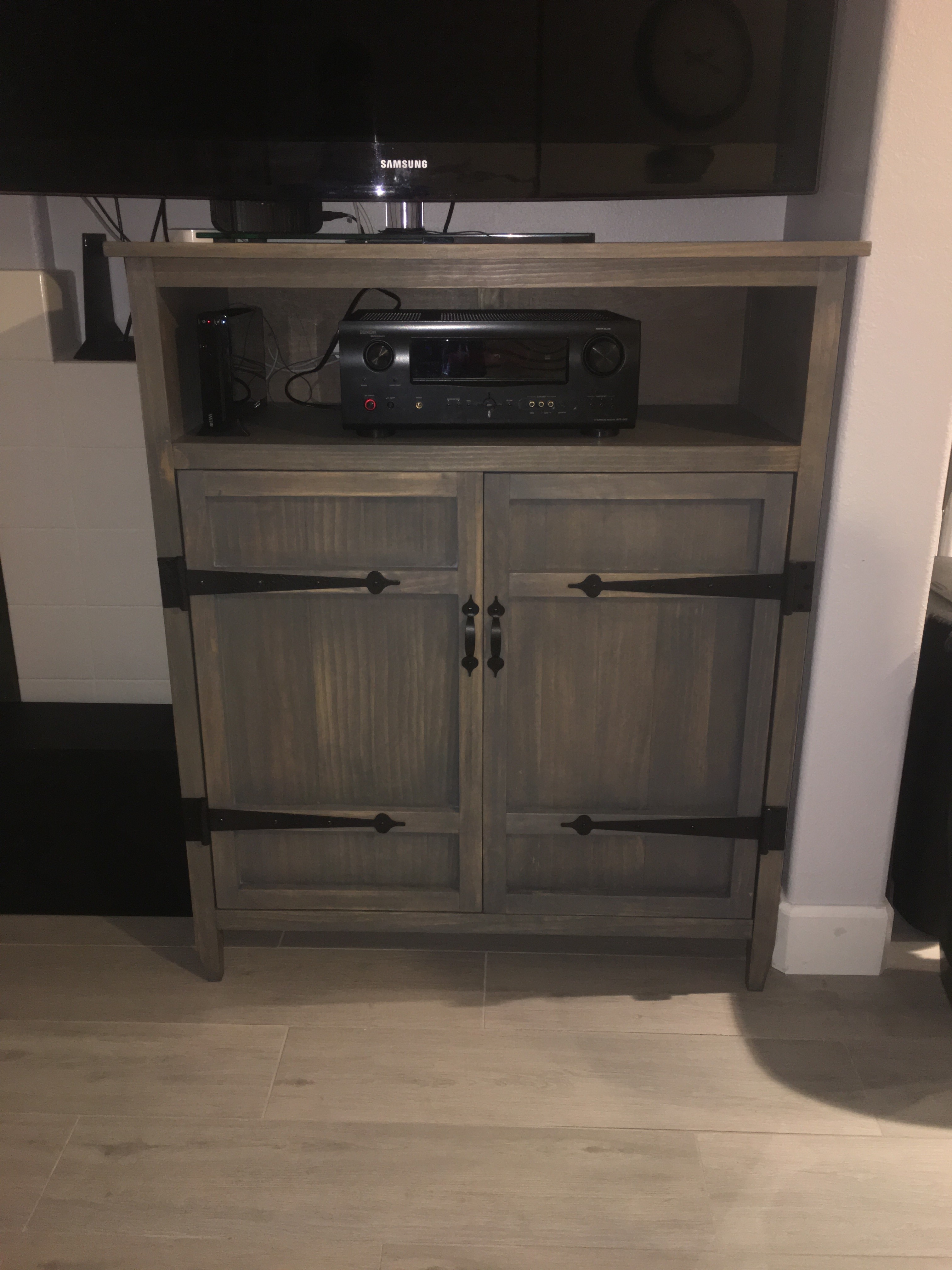

    I finished this one last night. I modified the plans to make taller and not as wide.

    https://uploads.disquscdn.com/images/9cd037913c3c5a3ca1ad32f60221f0103588614ad106db1e3575248b049839a3.jpg

    • Very nice! I really like how that turned out!

    • Frank Magana

      Mind sharing your modifications?

  • Donna Kowalik

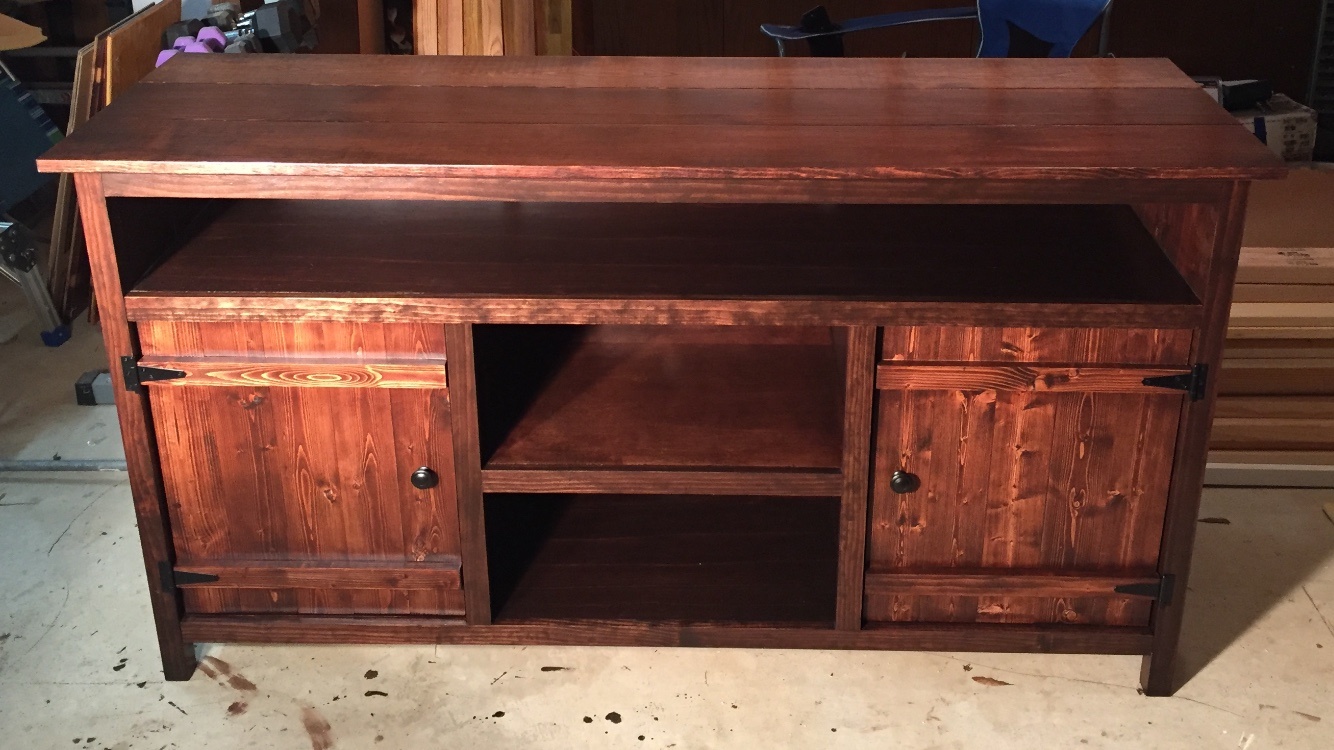

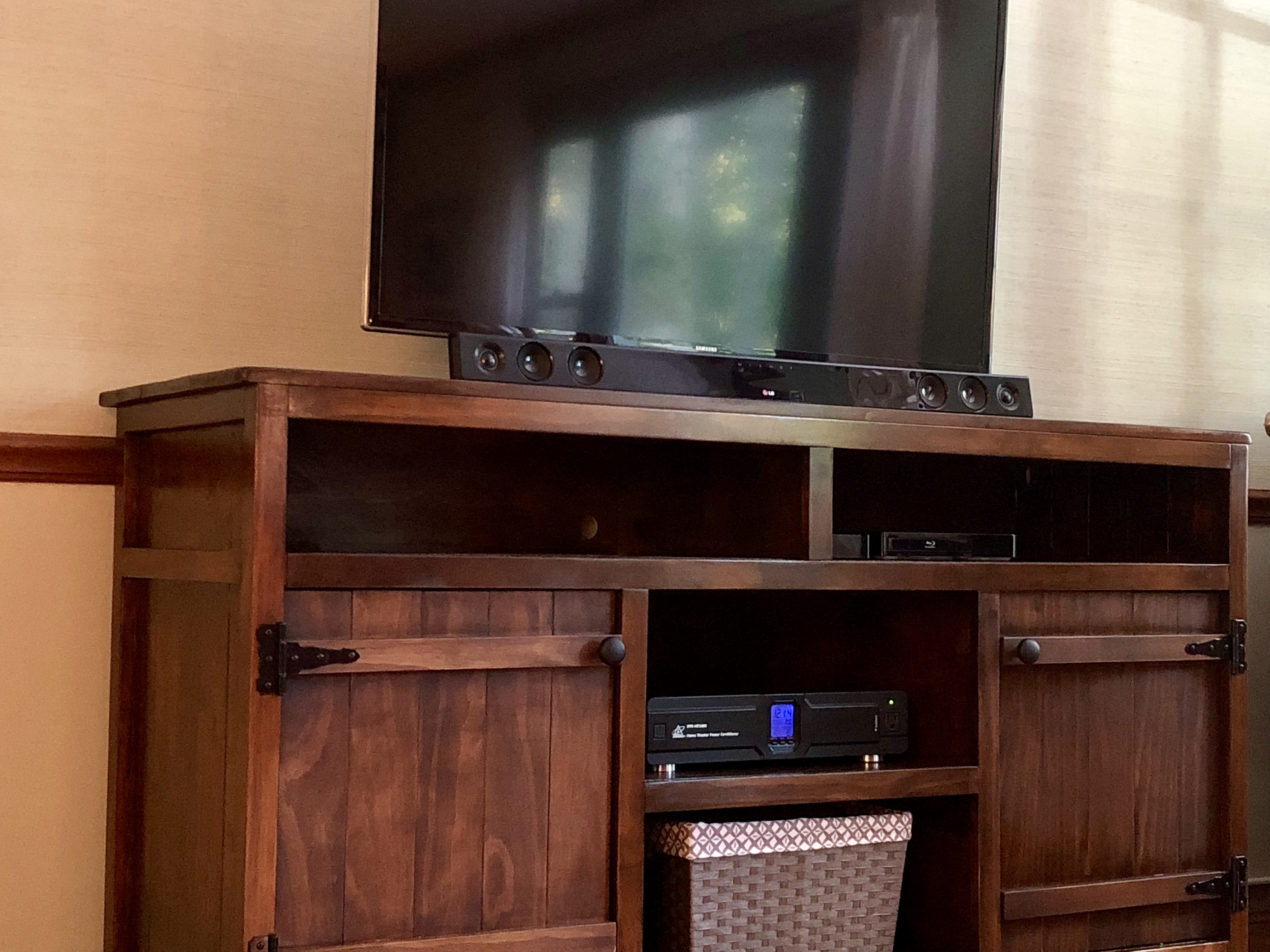

    Absolutely LOVE how our media center turned out. Thank you so much for the plans! Minor modification to accommodate a sound bar. Stained with Varathane Carrington. Had shop lights on so a little bright in some places. Perfect first major build for me!
    https://uploads.disquscdn.com/images/1355390858da51edc2d2128d3e9cbef7ff380f7a015fd1aa12a561da8158b9e8.jpg
